Adhesive Tape: The Ultimate Guide to a Versatile Fastening Solution
1. Introduction and Historical Context
Adhesive tape, a ubiquitous and indispensable material, represents a cornerstone of modern manufacturing, packaging, and daily life. It is a complex composite material consisting of a backing substrate coated with a layer of adhesive, designed to bond surfaces together for a multitude of purposes, including sealing, joining, masking, protecting, and even healing. The invention of the first pressure-sensitive adhesive tape in the 1920s, famously known as Scotch Tape, revolutionized industries by providing a clean, instant, and reliable bonding method without the need for water, solvents, or heat. Today, adhesive tapes have evolved into a highly sophisticated class of products, engineered with precision to meet exacting performance requirements across virtually every sector of the global economy. Their versatility, efficiency, and cost-effectiveness make them a superior alternative to traditional mechanical fasteners like screws, nails, and liquid adhesives.
2. Key Components and Manufacturing Process
The performance of any adhesive tape is determined by the synergy between its two primary components: the backing and the adhesive.
The Backing (Substrate):This is the carrier web that provides the tape with its structural integrity.
1、Common materials include:
Films: Polypropylene (BOPP), Polyvinyl Chloride (PVC), Polyethylene (PE), and Polyester (PET). These offer excellent strength, moisture resistance, and a smooth appearance.
Papers:Crepe paper and flat-back paper, often used for masking and painting applications due to their ease of tearing and conformability.
Foams:Polyethylene or polyurethane foams, which provide cushioning, sealing, and vibration damping.
Fabric:Woven and non-woven cloth (e.g., fiberglass, cotton) for extreme durability, tear resistance, and manual tearing capability.
The Adhesive:This is the chemically formulated layer that creates the bond. Key types are:
Acrylic:Known for excellent environmental resistance (UV, temperature, solvents), aging clarity, and strong bonding to a wide variety of surfaces. It offers a good balance of performance.
Rubber-Based (Natural or Synthetic): Provides very aggressive, instant "tack" and high shear strength, making it ideal for heavy-duty packaging. It can be less resistant to environmental factors.
Silicone:Used for extreme temperature applications (both high and low), such as in aerospace and electronics, offering excellent chemical inertness.
2、The manufacturing process involves precisely coating the adhesive onto the backing, followed by a drying or curing stage in an oven. The tape is then wound into large master rolls (jumbos) before being slit into the required widths for consumer or industrial use.
3. Major Tape Types and Their Specific Applications
The diversity of adhesive tapes is vast, with each type engineered for a specific purpose:

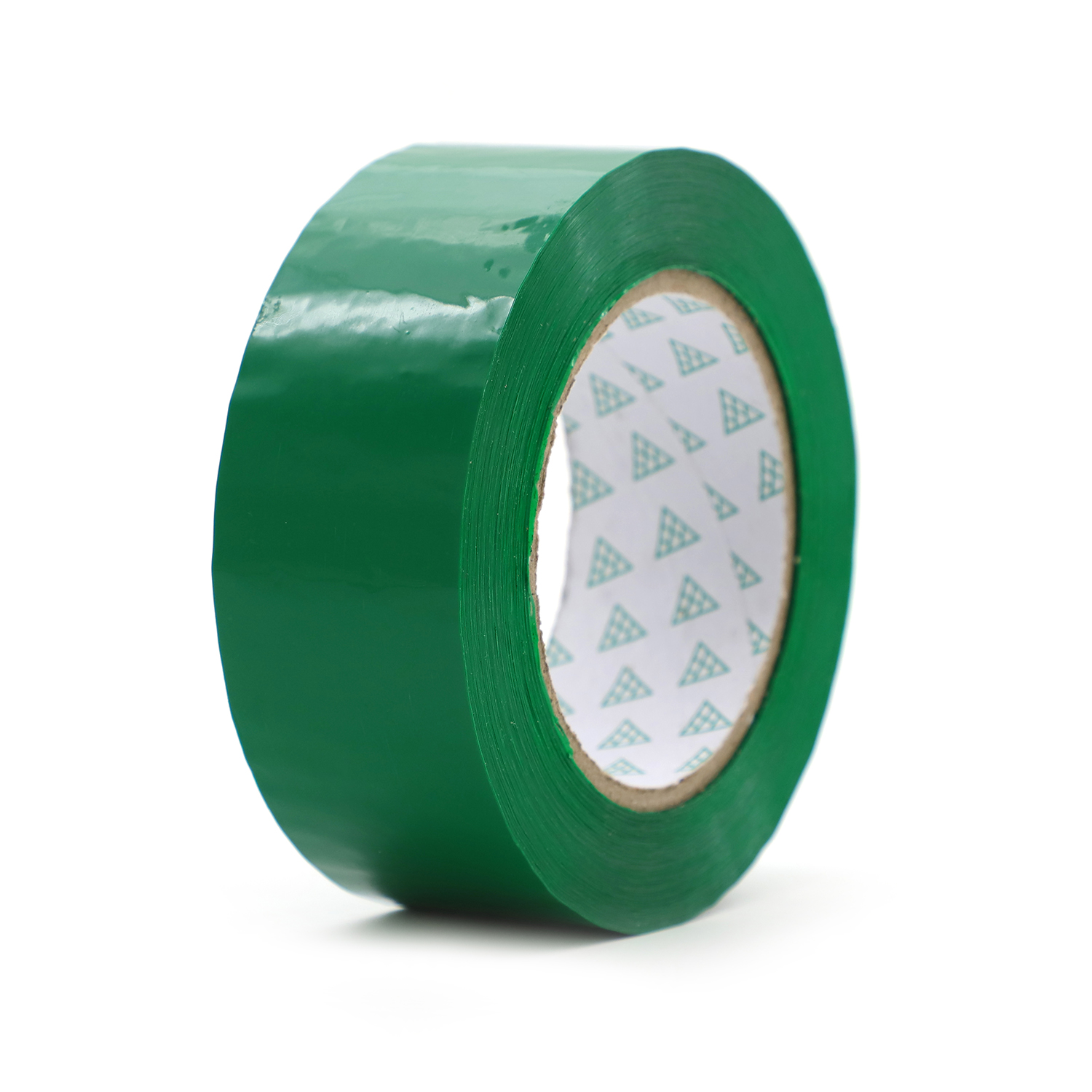

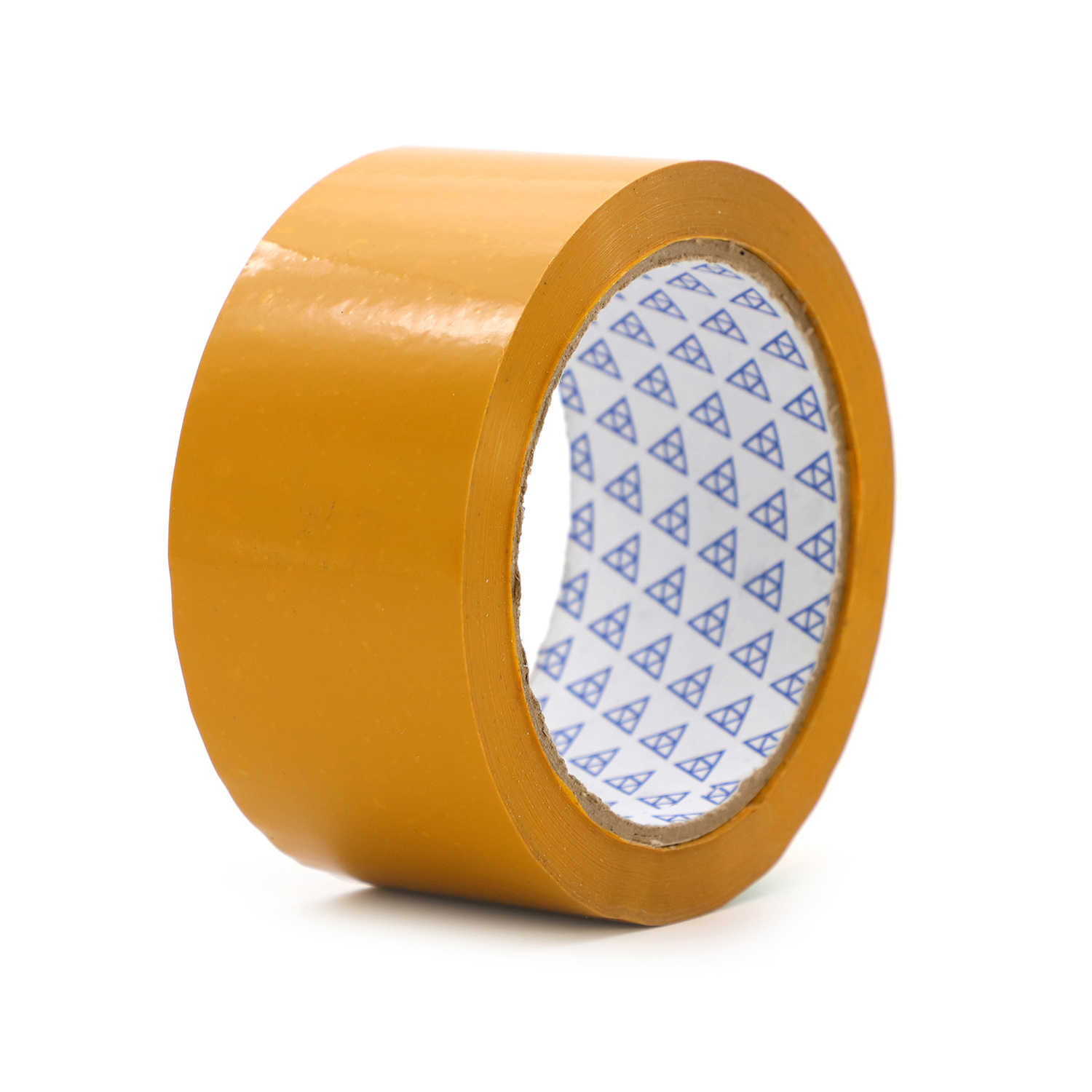

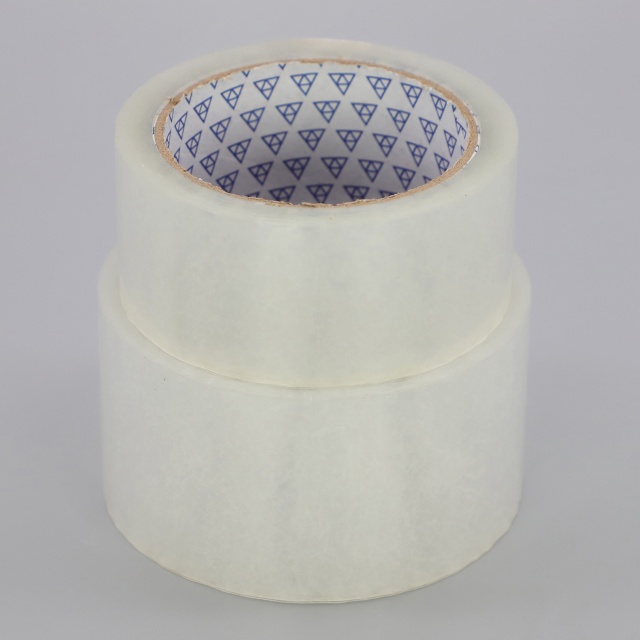

Packaging Tapes:The most common type, typically based on BOPP film with an acrylic or hot-melt rubber adhesive. Used for sealing corrugated cardboard boxes in logistics, e-commerce, and warehousing. They can be transparent or printed with logos.
Double-Sided Tapes: Feature adhesive on both sides of a carrier (e.g., foam, film, tissue). They are essential for mounting, assembling, and bonding objects together invisibly, used in automotive trim attachment, signage, and smartphone assembly.
Masking Tapes: Made from crepe paper with a temperature-resistant adhesive, they are designed to create sharp paint lines and be removed cleanly without residue after painting in automotive and construction industries.
Duct Tapes:A cloth-backed tape with a polyethylene coating and a very aggressive rubber-based adhesive. Renowned for its immense tensile strength and water resistance, it is used for temporary repairs, sealing ducts, and bundling.
Specialty Tapes:
Electrical Tapes:Typically vinyl-based, providing excellent electrical insulation and flame retardancy for wiring.
Medical Tapes:Hypoallergenic tapes made from non-woven materials or gentle paper, designed for secure yet comfortable adhesion to skin.
Surface Protection Tapes:Low-tack films applied to delicate surfaces like stainless steel, glass, or acrylic during manufacturing and shipping to prevent scratches.
4. Technical Advantages and Performance Characteristics
The widespread adoption of adhesive tapes is driven by several key advantages:
Uniform Stress Distribution: Unlike spot fasteners, tapes distribute stress evenly across the entire bonded area, reducing the risk of failure and material fatigue.
Aesthetics and Design Flexibility: Tapes enable sleek, seamless designs without visible fastening points. They can bond dissimilar materials (e.g., metal to plastic) that are difficult to join by other means.
Damping and Sealing: Many tapes provide vibration damping, sound absorption, and environmental sealing against moisture, dust, and gases.
Efficiency and Speed: Application is rapid, requiring minimal training and no drying time, which accelerates production and packaging lines.
5. Conclusion: An Engineered Solution for Modern Challenges
Adhesive tape is far more than a simple sticky strip; it is a highly engineered, performance-driven solution that continues to evolve. From enabling the miniaturization of electronics to ensuring the safe delivery of e-commerce goods and contributing to lighter, more fuel-efficient vehicles, adhesive tapes are fundamental to innovation and efficiency. As material science advances, the future points towards smarter tapes with enhanced sustainability, such as bio-based adhesives and easier-to-recycle monomaterial structures, solidifying their role as a critical technology for the 21st century.
